PZS Series

Traction lead-acid battery is used as DC power supply for forklift, tractor, carrier, underground mining locomotive and other equipment. It is widely used in airports, stations, ports, vegetable and fruit markets and warehouses of industrial and mining enterprises. At the same time, as a clean and pollution-free vehicle, DC power supply has been widely used in public transport, sports and entertainment places.

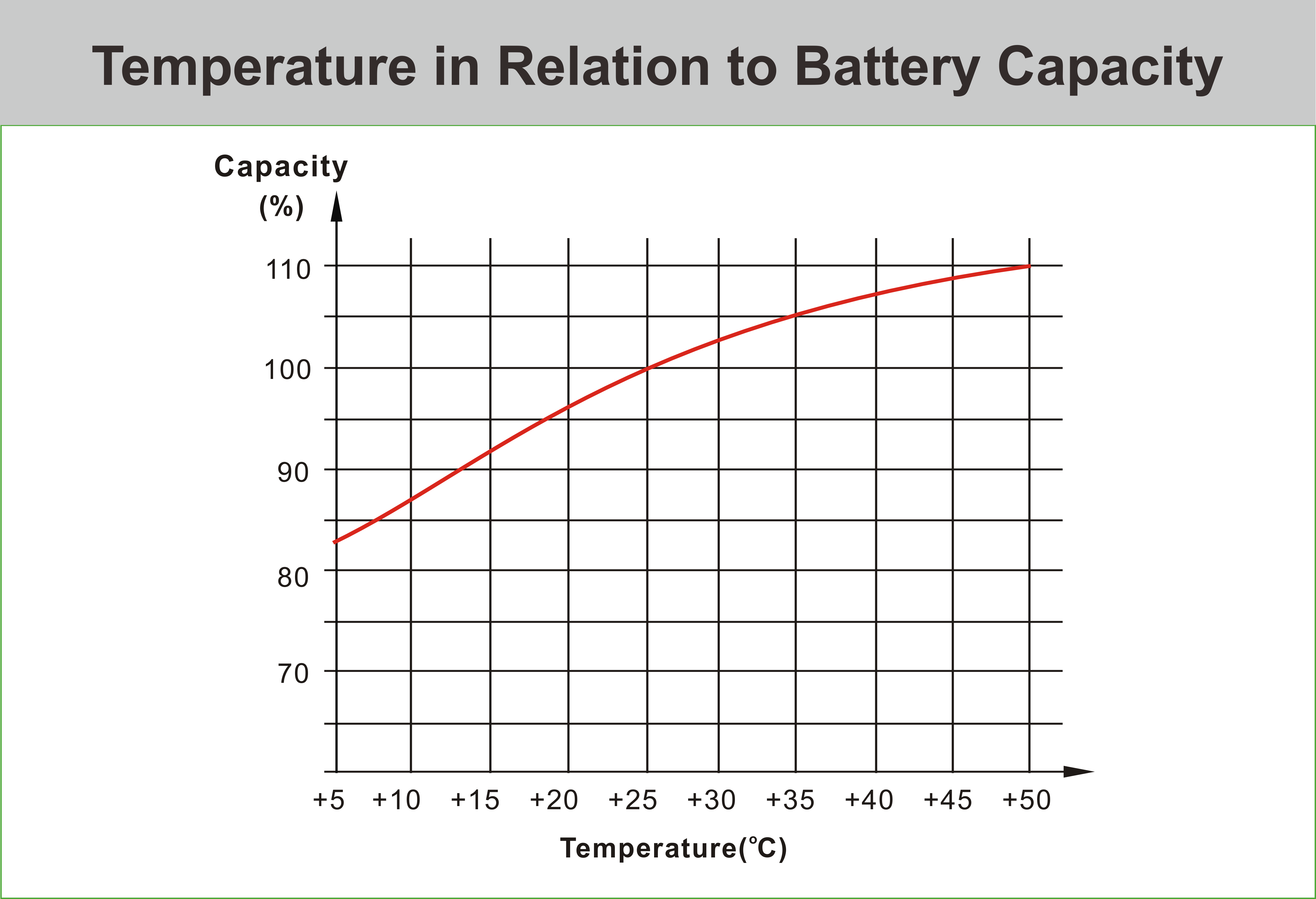

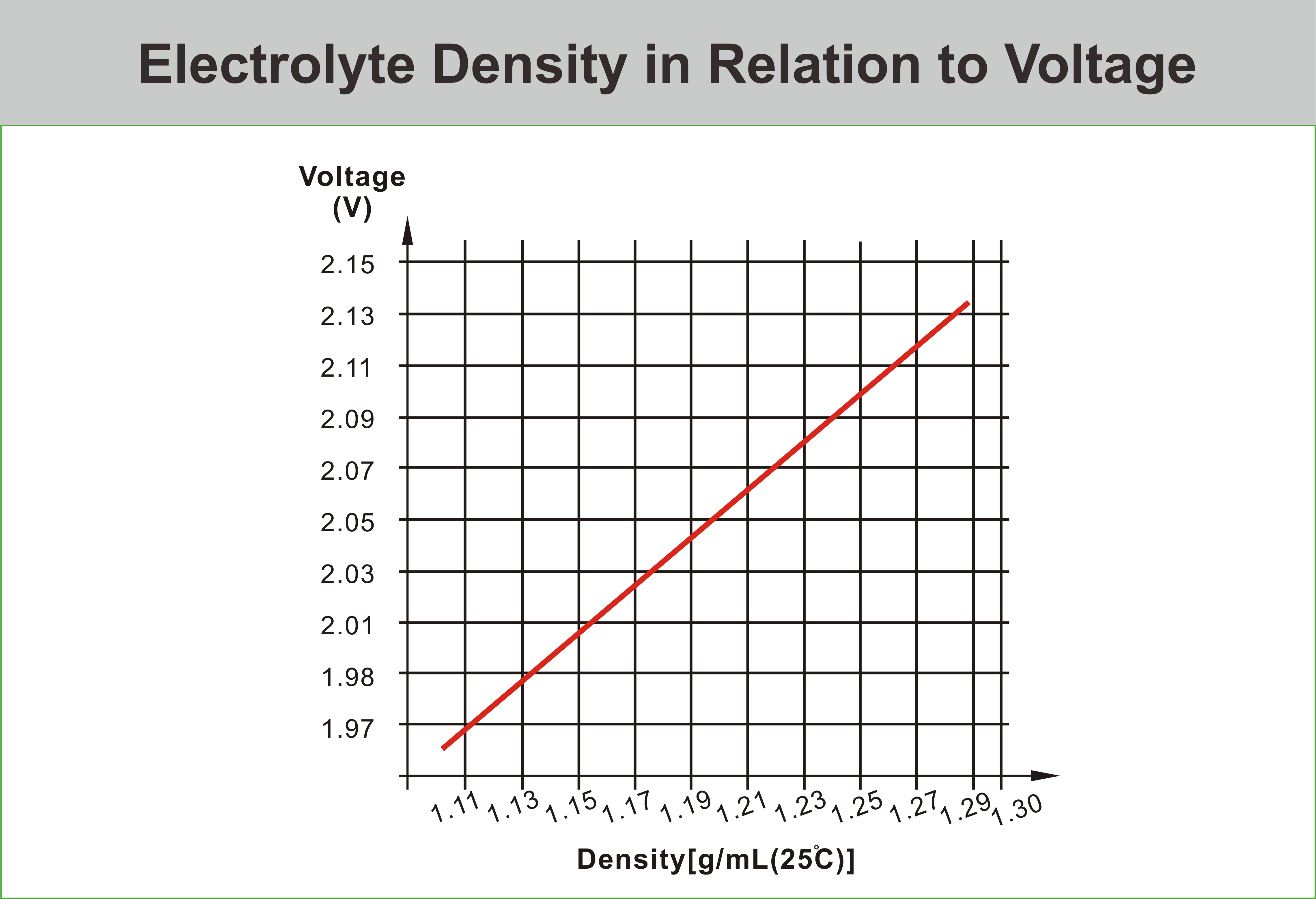

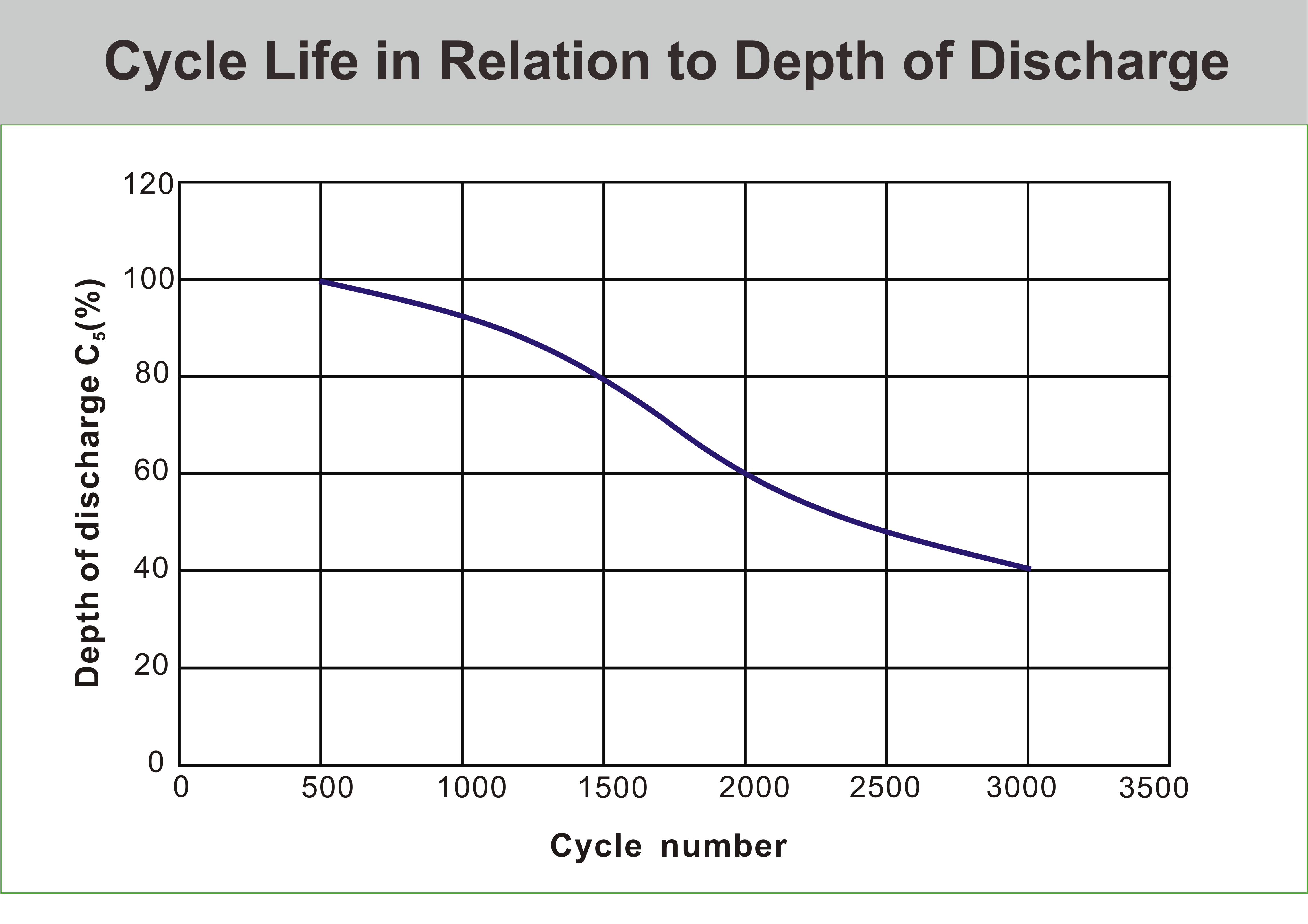

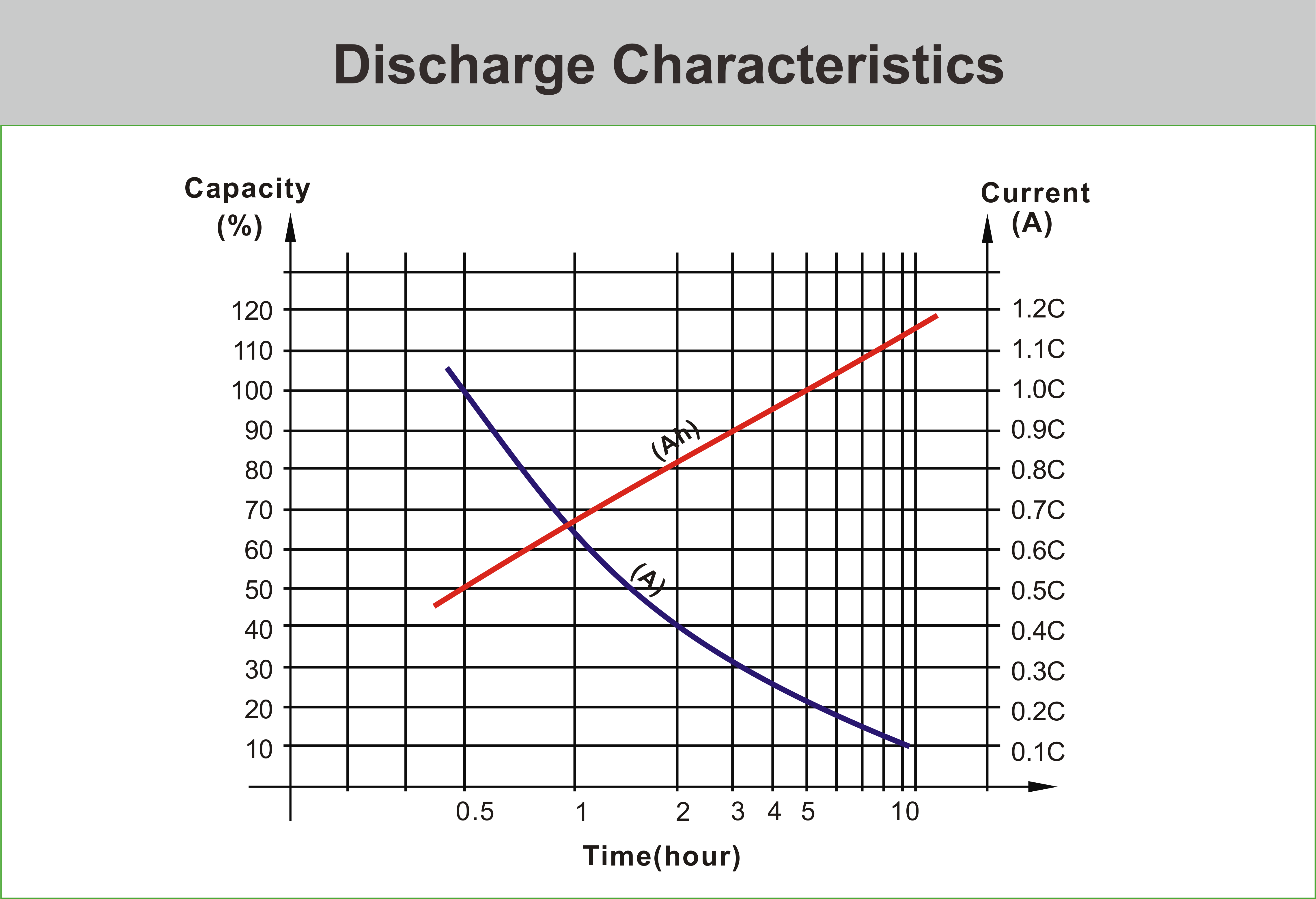

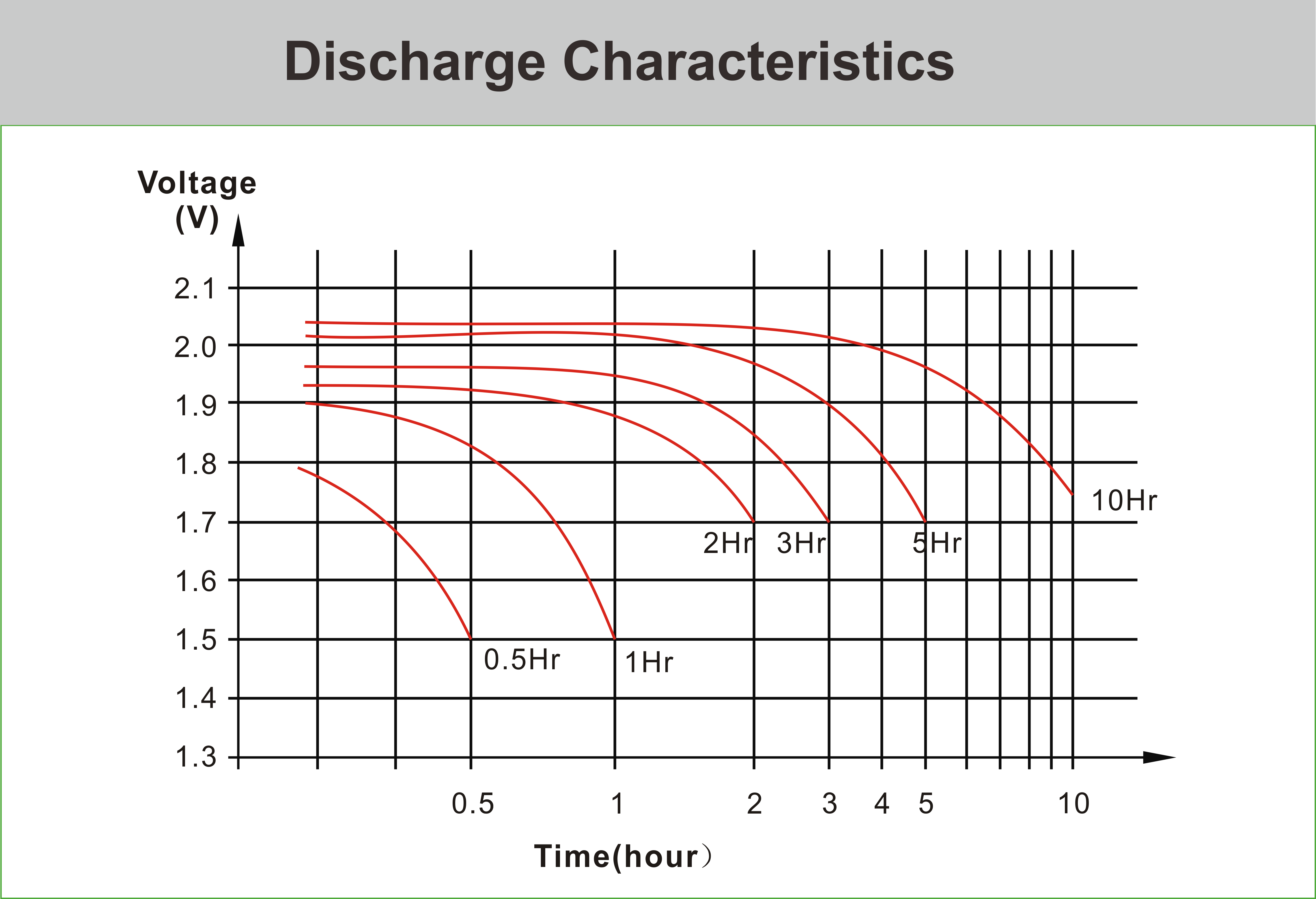

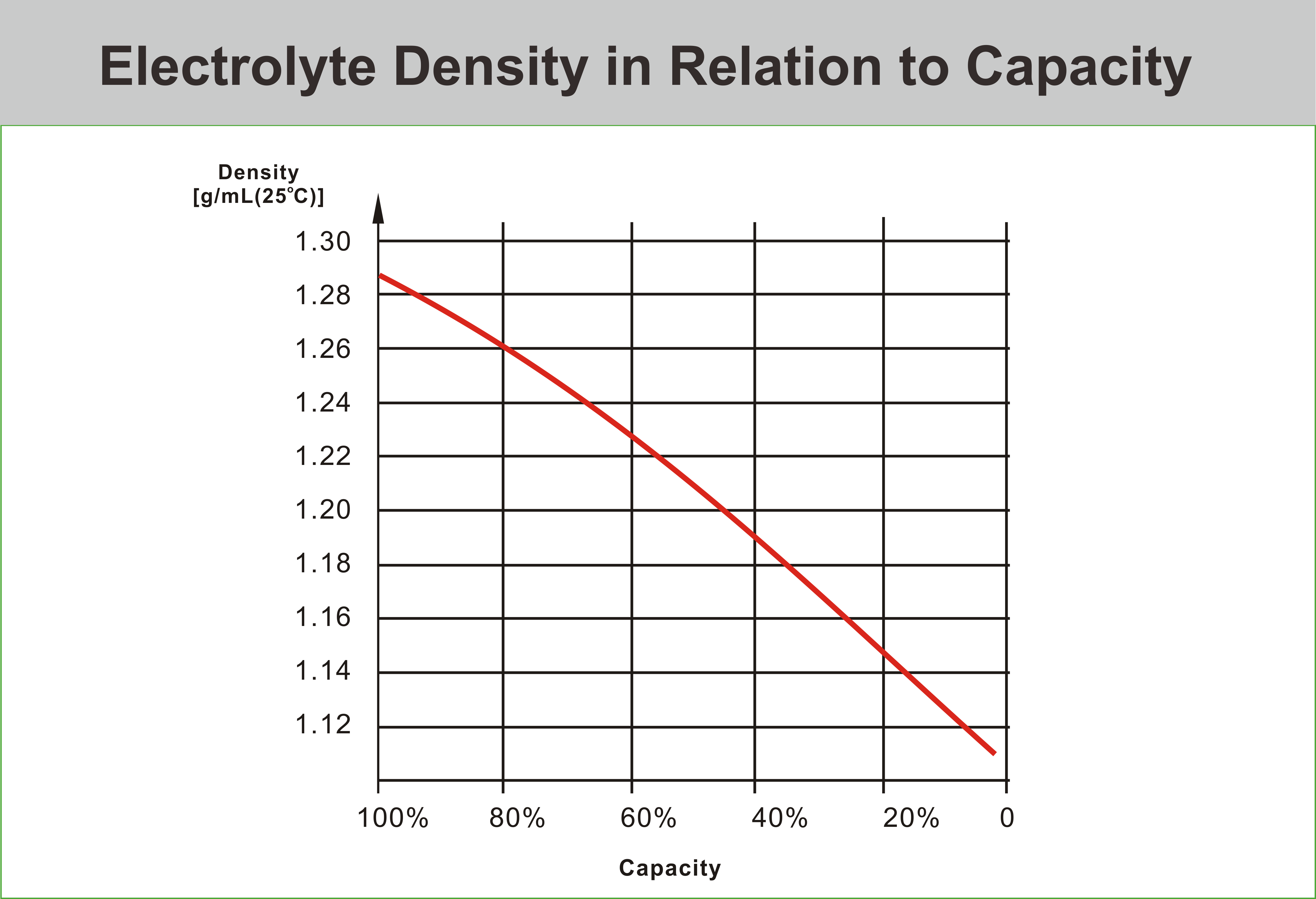

Specification Features Application Curves

Model	Rated Voltage (V)	5Hr	Maximum Overall Dimensions				Approx.Weight
Model	Rated Voltage (V)	（Ah）	L(mm)	W(mm)	H(mm)	TH(mm)	No Acid (kg)	With Acid (kg)
2PzS200	2	200	47	198	569	601	10.2	13.0
2PzS200C	2	200	47	198	569	601	9.80	12.6
3PzS210G	2	210	65	198	404	436	9.90	12.9
3PzS210	2	210	65	198	404	436	10.2	13.2
2PzS210	2	210	47	198	513	545	9.60	12.8
2PzS230	2	230	47	198	543	575	10.2	13.7
3PzS240G	2	240	65	198	469	501	10.8	14.2
3PzS240	2	240	65	198	469	501	11.4	14.8
2PzS250	2	250	47	198	574	606	10.9	14.4
3PzS270	2	270	65	198	469	501	12.0	15.8
4PzS280	2	280	83	198	404	436	13.1	17.1
3PzS300	2	300	65	198	569	601	14.3	18.5
4PzS320	2	320	83	198	404	436	13.3	17.8
3PzS345	2	345	65	198	543	575	14.3	19.6
4PzS360	2	360	83	198	469	501	15.3	20.5
3PzS375	2	375	65	198	574	606	15.2	20.5
5PzS400	2	400	101	198	404	436	16.2	21.8
4PzS400C	2	400	83	198	569	601	17.6	23.2
4PzS400	2	400	83	198	569	601	18.4	24.0
6PzS420	2	420	119	198	404	436	18.8	24.8
3PzS420	2	420	65	198	688	720	18.0	24.4
4PzS440	2	440	83	198	536	568	18.9	25.4
3PzS450	2	450	65	198	720	752	18.8	25.3
4PzS460	2	460	83	198	543	575	18.4	25.4
6PzS480	2	480	119	198	404	436	19.1	25.9
4PzS480H	2	480	83	198	569	601	19.5	26.3
4PzS480	2	480	83	198	643	675	21.0	27.8
5PzS500C	2	500	101	198	569	601	21.4	28.5
5PzS500	2	500	101	198	569	601	22.4	29.5
4PzS500	2	500	83	198	643	675	22.1	28.9
4PzS560	2	560	83	198	688	720	23.2	31.8
5PzS575	2	575	101	198	543	575	22.5	31.3
6PzS600	2	600	119	198	569	601	25.3	33.8
5PzS600	2	600	101	198	643	675	26.9	35.4
5PzS600H	2	600	101	198	569	601	23.8	32.3
4PzS600	2	600	83	198	720	752	24.3	32.8
9PzS630G	2	630	173	198	401	433	26.9	35.8
9PzS630	2	630	173	198	404	436	28.0	36.9
5PzS650	2	650	101	198	682	714	26.9	36.2
7PzS700	2	700	137	198	569	601	30.6	40.5
5PzS700	2	700	101	198	688	720	28.4	39.1
8PzS720	2	720	155	198	469	501	28.9	39.1
6PzS720	2	720	119	198	569	601	28.1	38.4
5PzS750	2	750	101	198	720	752	29.8	40.4
7PzS840	2	840	137	198	569	601	32.5	44.4
8PzS920	2	920	155	198	543	575	35.4	50.0
8PzS1240	2	1240	155	198	720	752	46.2	63.7
10PzS1550	2	1550	191	198	720	752	57.1	79.1

1.Tubular positive plate, good corrosion resistance, long battery life.

2. Special grid alloy formula is used to slow down grid corrosion. Reduce the water loss rate, reduce the number of maintenance, achieve half maintenance, improve the battery life.

3. Improve the density of the active substance in the tube positive plate, prevent the softening and shedding of the active substance, improve the capacity and life.

4.Special electrolyte formula is used to prevent cathode passivation and dendrite short circuit.

5.Automatic water filling system (optional).

Traction lead-acid batteries are widely used in airports, stations, ports, vegetable and fruit markets and warehouses of industrial and mining enterprises as dc power sources for forklifts, tractors, haulers and other equipment. At the same time, as a clean and pollution-free vehicle, DC power supply has been widely used in public transportation, sports and entertainment venues.

1.Truck series

2. Stacker truck series

3. Forklift series

4. Tractor series

5. Counterweight forklift series
