PLH+C Series
-Excellent Charging Acceptance with High Charging Efficiency，Excellent PSoC Cycle Performance under High Ambient Temperature，Punched continuous grid strip
Contact US
-Excellent Charging Acceptance with High Charging Efficiency，Excellent PSoC Cycle Performance under High Ambient Temperature，Punched continuous grid strip
Contact US| Model | Rated
Voltage Voltage | 10Hr | Length | Width | Height | TH | Weight | Terminal | |||||
| V | 1.8
V
/cell | mm | in. | mm | in. | mm | in. | mm | in. | kg | lbs | ||

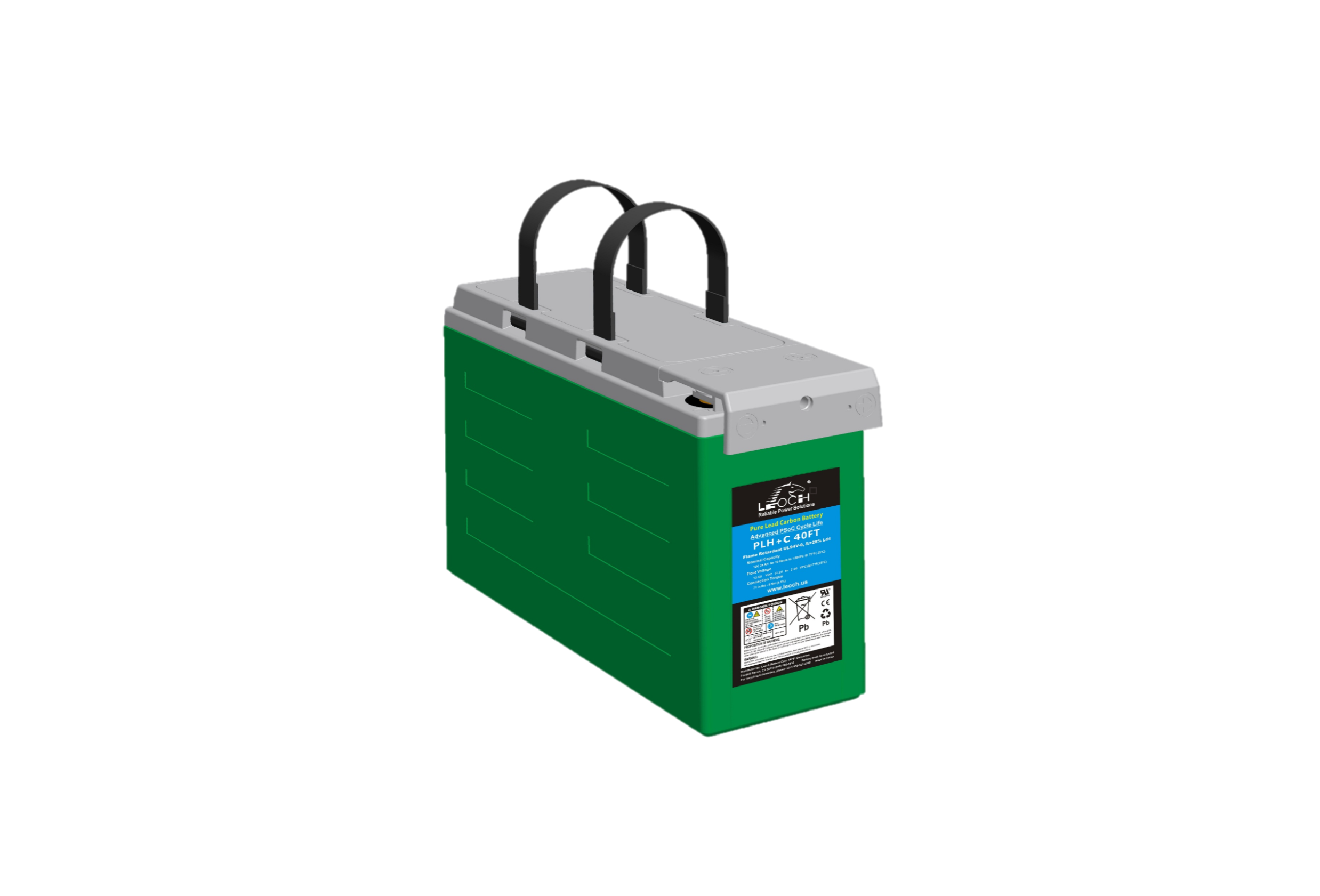

| PLH+C 40FT | 12 | 38 | 298.7 | 11.76 | 97 | 3.82 | 184 | 7.24 | 184 | 7.24 | 12.5 | 27.56 | T6-A(M8) |
| PLH+C 100FT | 12 | 100 | 405.4 | 15.96 | 108 | 4.25 | 287 | 11.3 | 287 | 11.3 | 30.8 | 67.9 | T11(M8) |

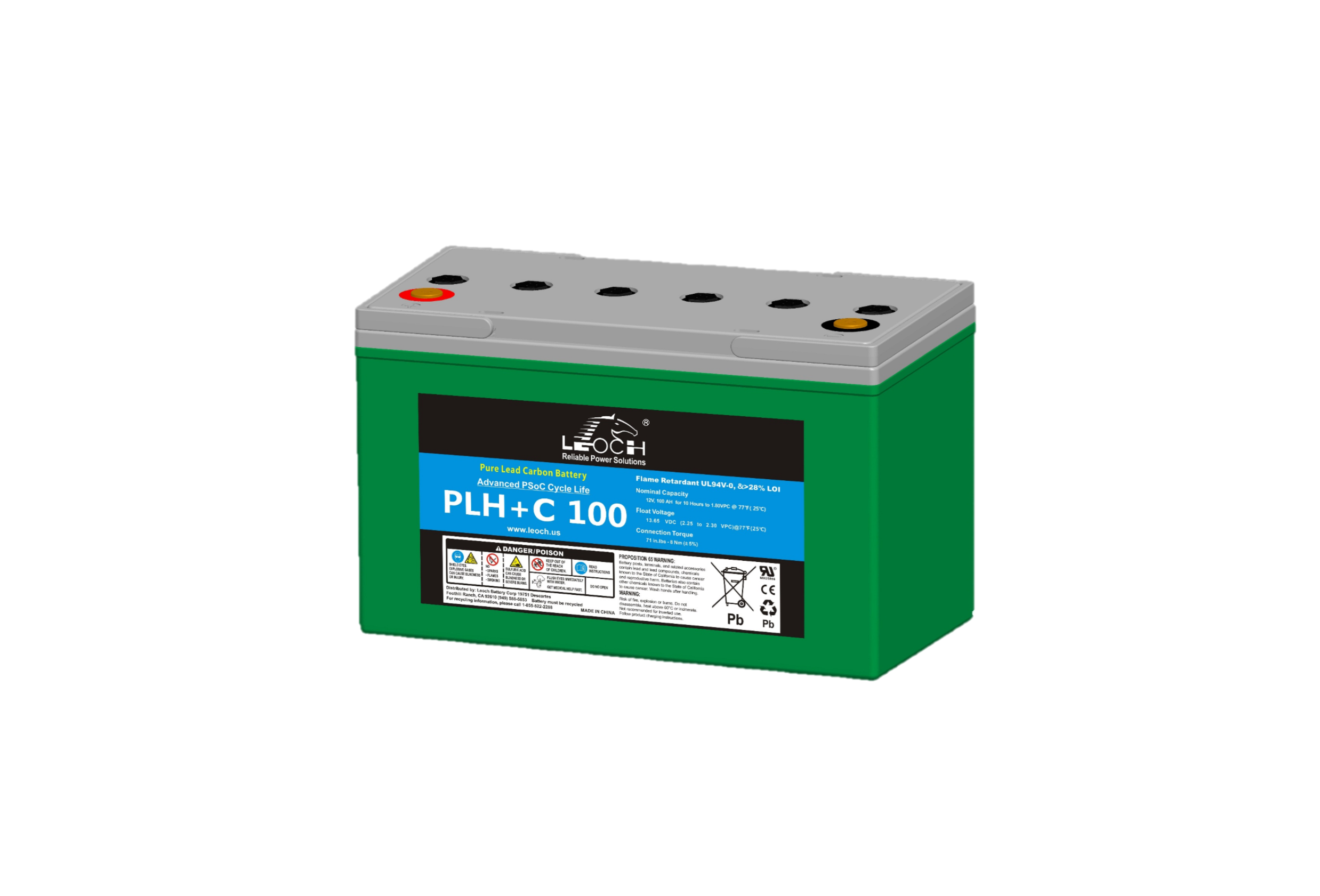

| PLH+C 100 | 12 | 100 | 341.5 | 13.44 | 175 | 6.89 | 213 | 8.39 | 215 | 8.46 | 31.2 | 68.78 | T11(M8) |
| PLH+C 170FT | 12 | 170 | 559 | 22.01 | 125 | 4.92 | 320 | 12.6 | 320 | 12.6 | 54.2 | 119.49 | T11(M8) |
| PLH+C 190FT | 12 | 190 | 559 | 22.01 | 125 | 4.92 | 320 | 12.6 | 320 | 12.6 | 57.6 | 126.98 | T11(M8) |

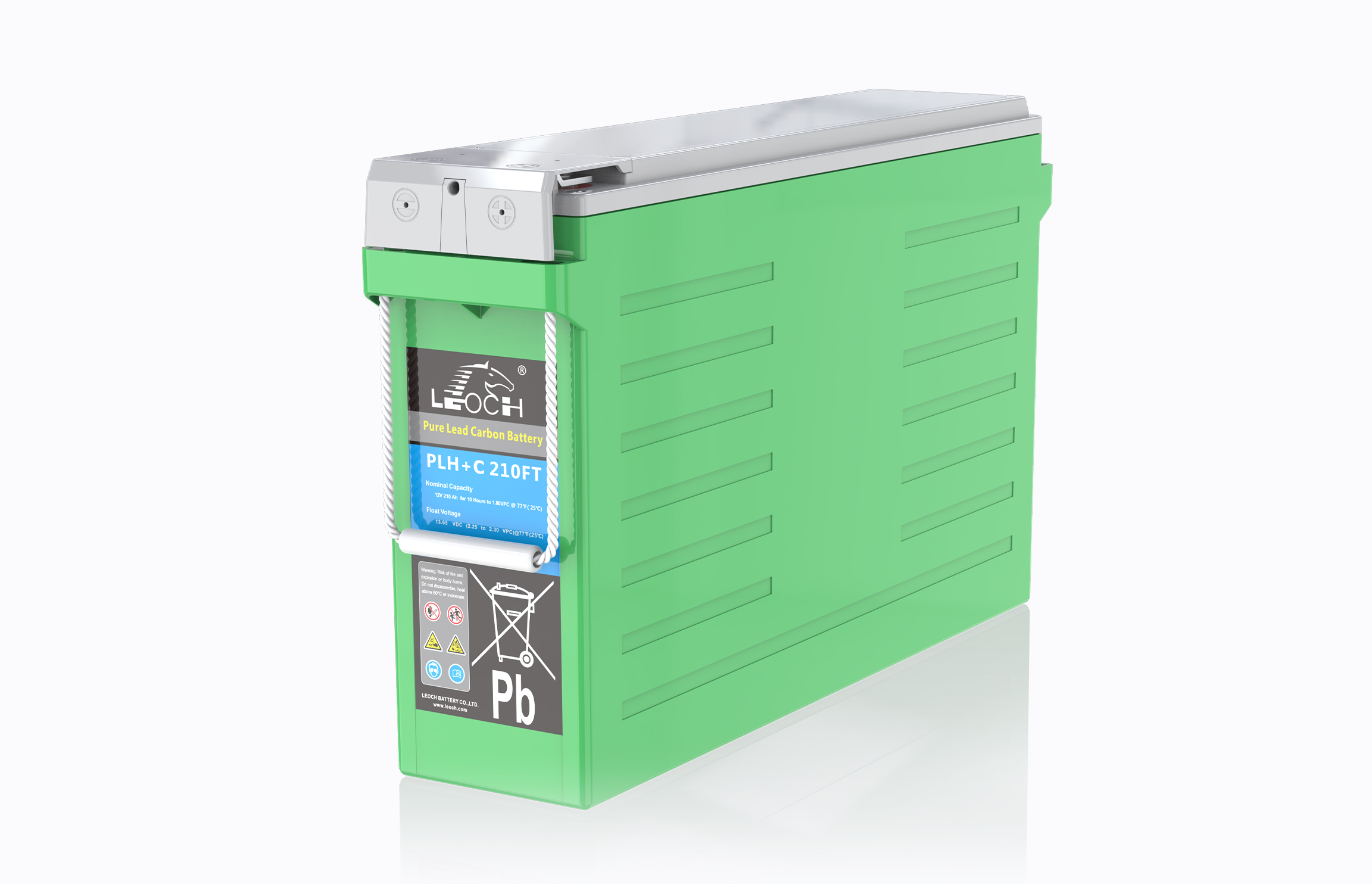

| PLH+C 210FT | 12 | 210 | 559 | 22.01 | 125 | 4.92 | 328 | 12.91 | 328 | 12.91 | 60.5 | 133.38 | T11(M8) |
Parameter information subject to the contract, here for your reference only.
1. 20 years design life(25℃)
2. High energy density

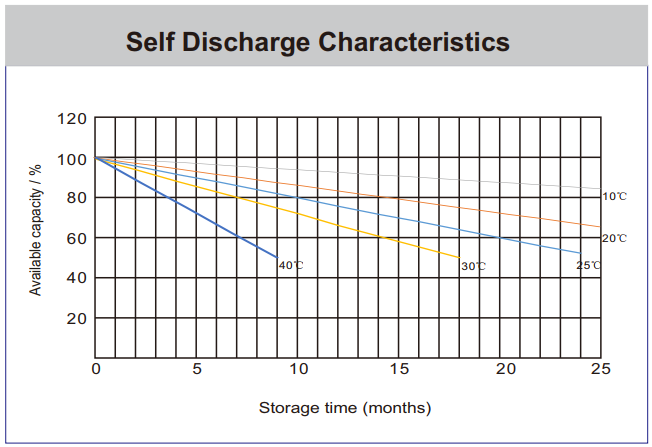

3. Low internal resistance and self-discharge rate

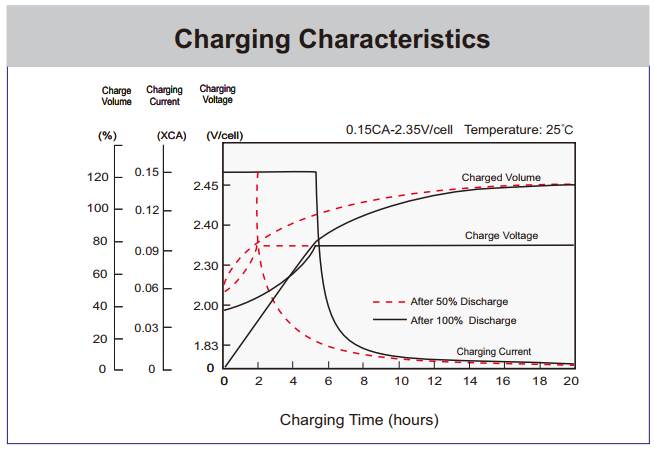

4. Excellent fast charging acceptance: 1 hour to 90% SOC
5. Excellent high rate discharge performance in low temperature
1. Backup Power
2. Telecom base station with unstable mains
