OPzS Series

OPzV Series OPzS Series

OPzS Series

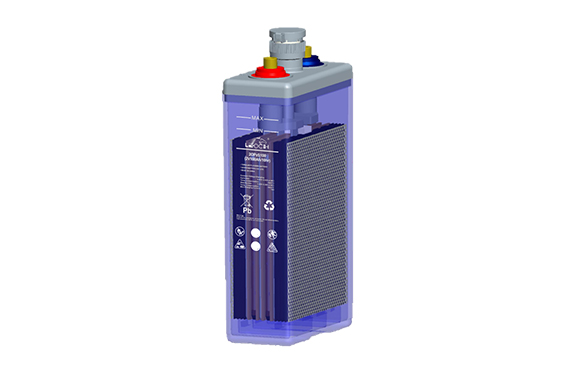

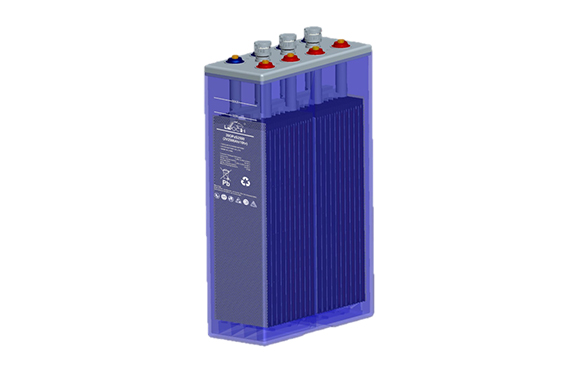

Leoch Flooded-OPzS battery

Contact US

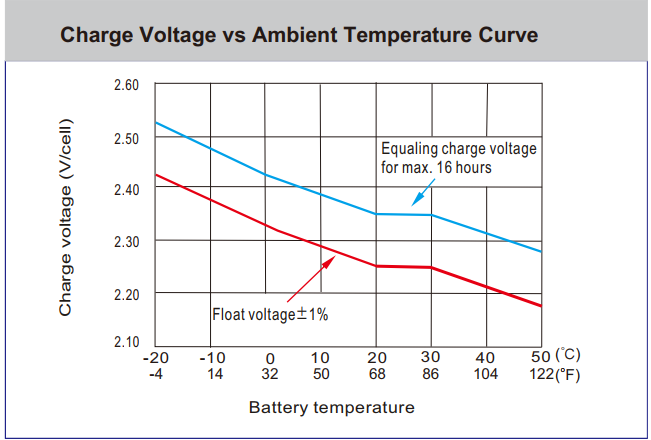

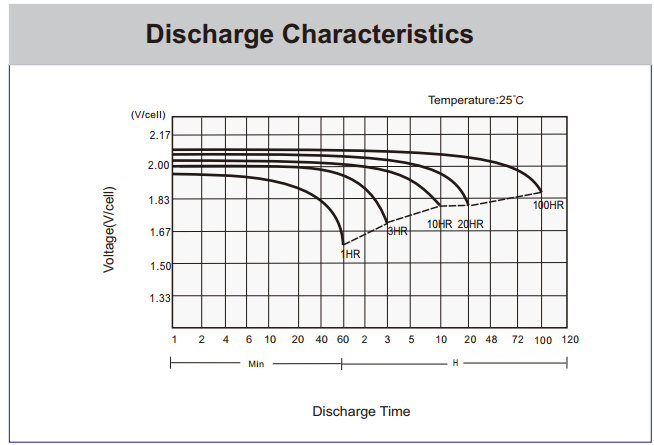

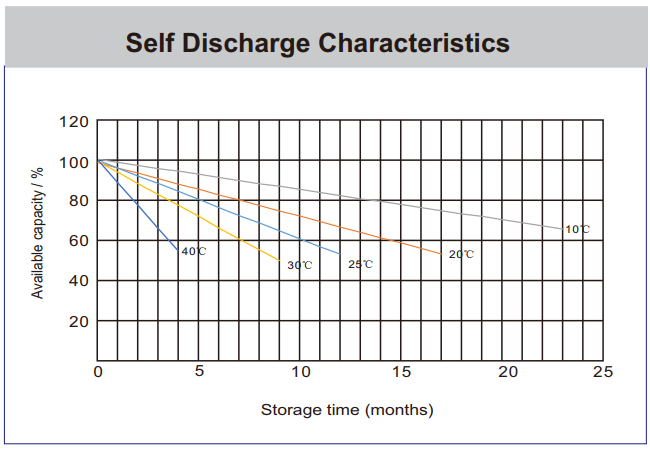

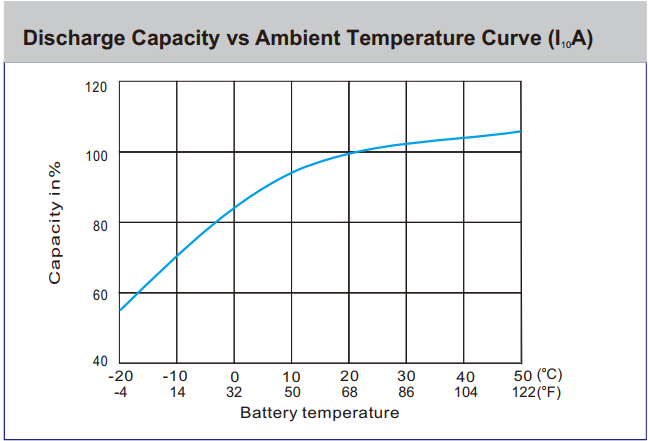

Specification Features Application Curves

Model	Rated Voltage (V)	10hr @1.80V/cell	L (mm)	W (mm)	H (mm)	T H(mm)	Weight (kg)	Terminal Type
2OPzS100	2	100	103	206	355	410	13.2	T7-B(M10)
3OPzS150	2	150	103	206	355	410	15.3	T7-B(M10)
4OPzS200	2	200	103	206	355	410	17.4	T7-B(M10)
5OPzS250	2	250	124	206	355	410	20.4	T7-B(M10)

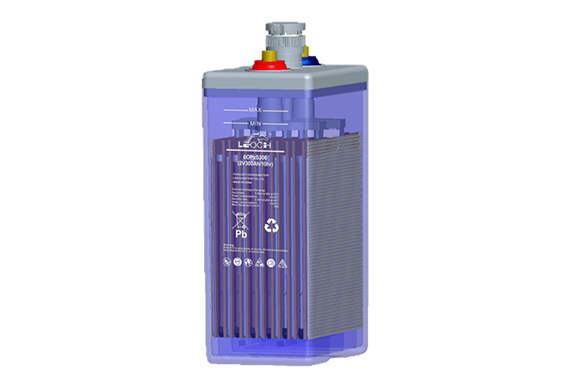

6OPzS300	2	300	145	206	355	410	23.8	T7-B(M10)
5OPzS350	2	350	124	206	471	526	28.3	T7-B(M10)

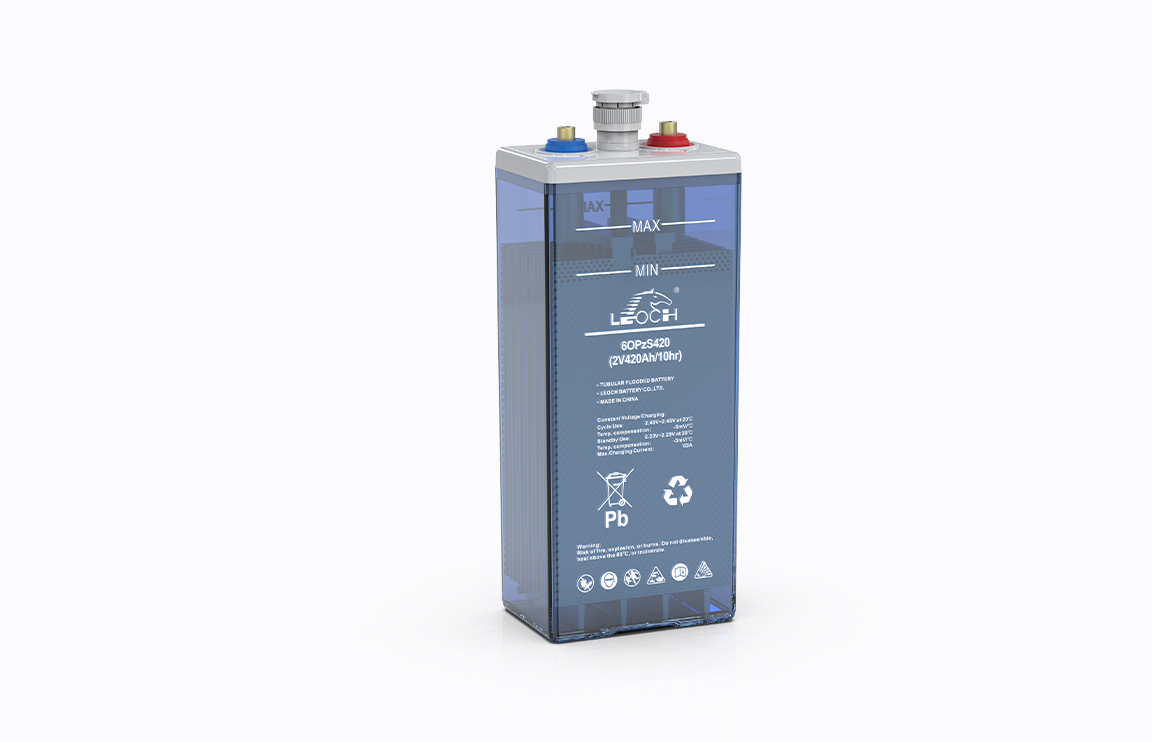

6OPzS420	2	420	145	206	471	526	32.7	T7-B(M10)
7OPzS490	2	490	166	206	471	526	38.0	T7-B(M10)
6OPzS600	2	600	145	206	646	701	45.4	T7-B(M10)
8OPzS800	2	800	191	210	646	701	62.9	T7-B(M10)
10OPzS1000	2	1000	233	210	646	701	77.4	T7-B(M10)
12OPzS1200	2	1200	275	210	646	701	91.7	T7-B(M10)
12OPzS1500	2	1500	275	210	796	851	113.8	T7-B(M10)
24OPzS3000	2	3000	576	212	772	827	224.8	T7-B(M10)

Parameter information subject to the contract, here for your reference only.

1. Lower self discharge.

2. Higher thermal capacity, No thermal runaway will occur.

3. Superior deep cycle performance.

4. Wide operation temperature range.

5. Long service life, designed life 15-20 years.

1. Telecommunications.
2. Radio and cellular telephone relay stations.
3. Emergency lighting systems.
4. Power stations, Conventional power stations.
5. alternative power (solar, wind).
6. Large UPS and computer back-up.
7. Railway signalling.
8. Maritime standby power on ships and ashore.
9. Standby power.
10. Buoy lighting.
