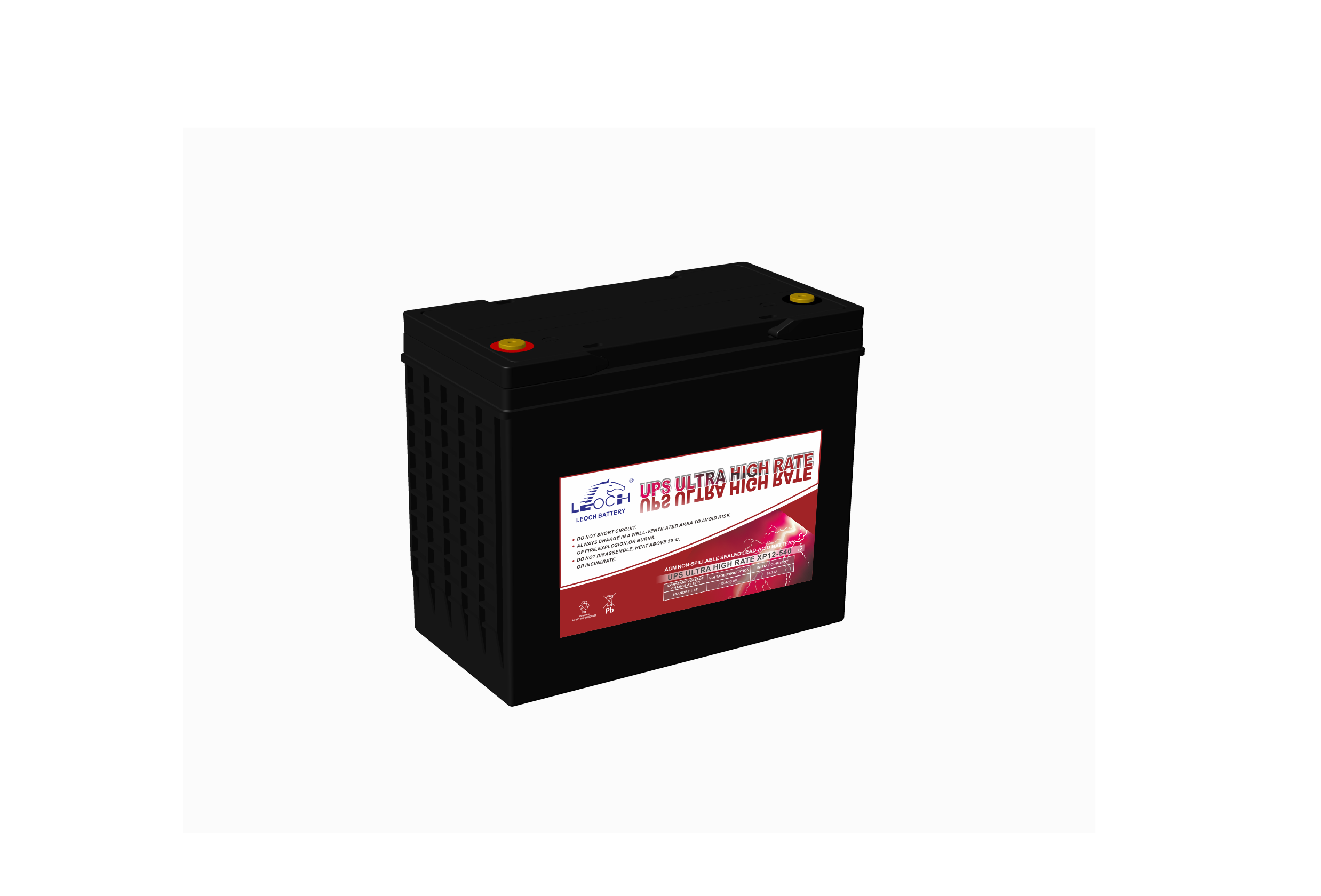

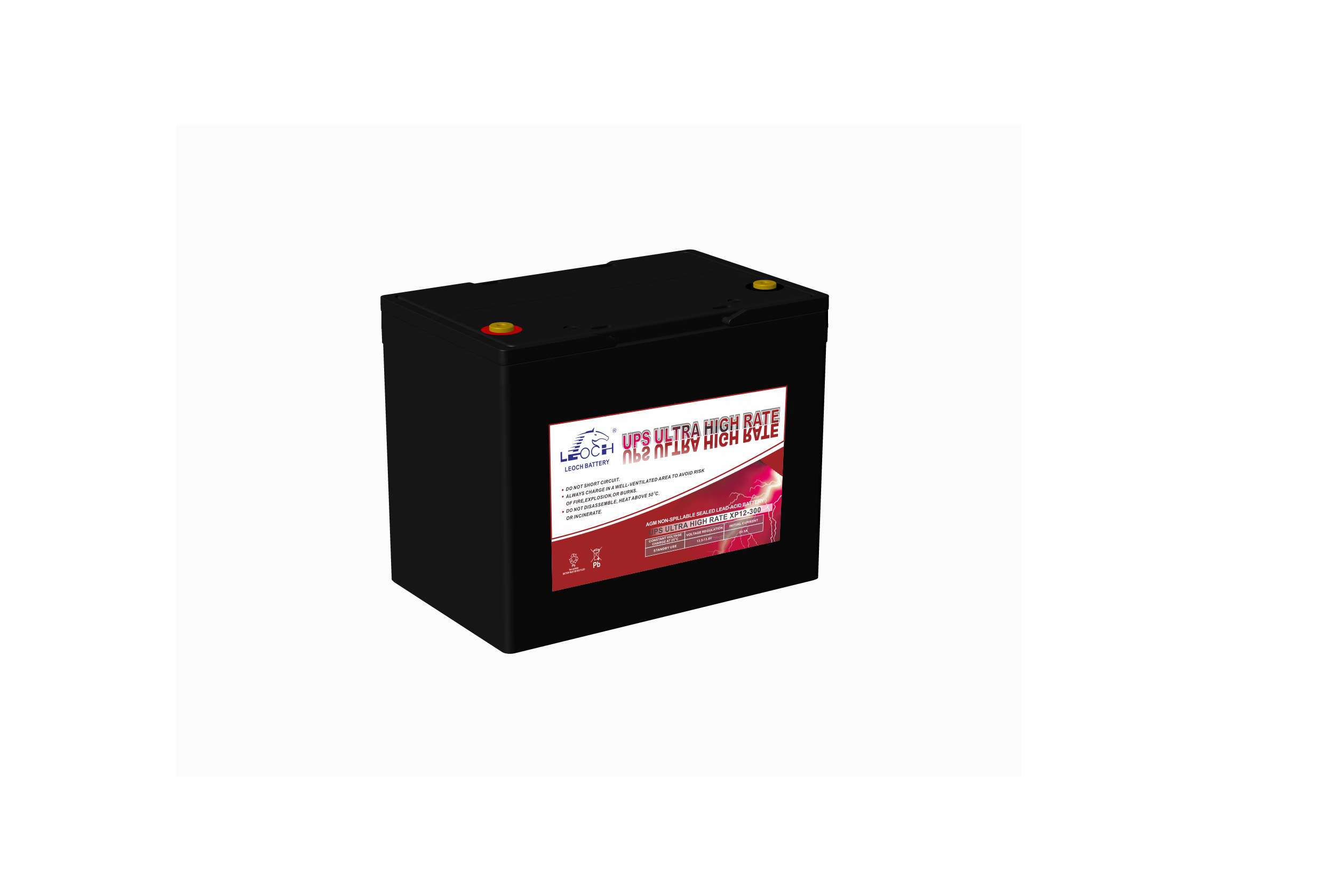

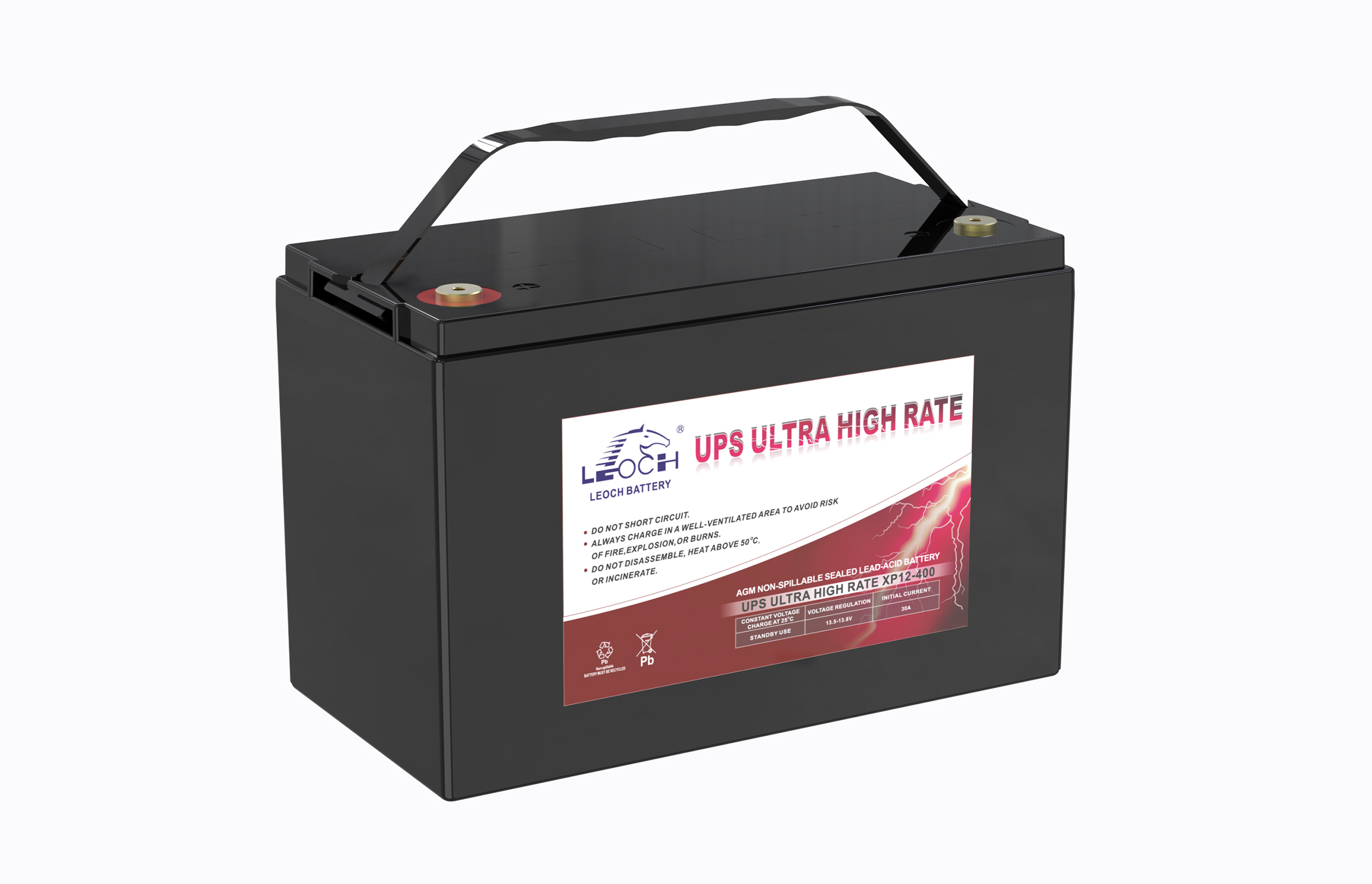

XP Series

XP Series

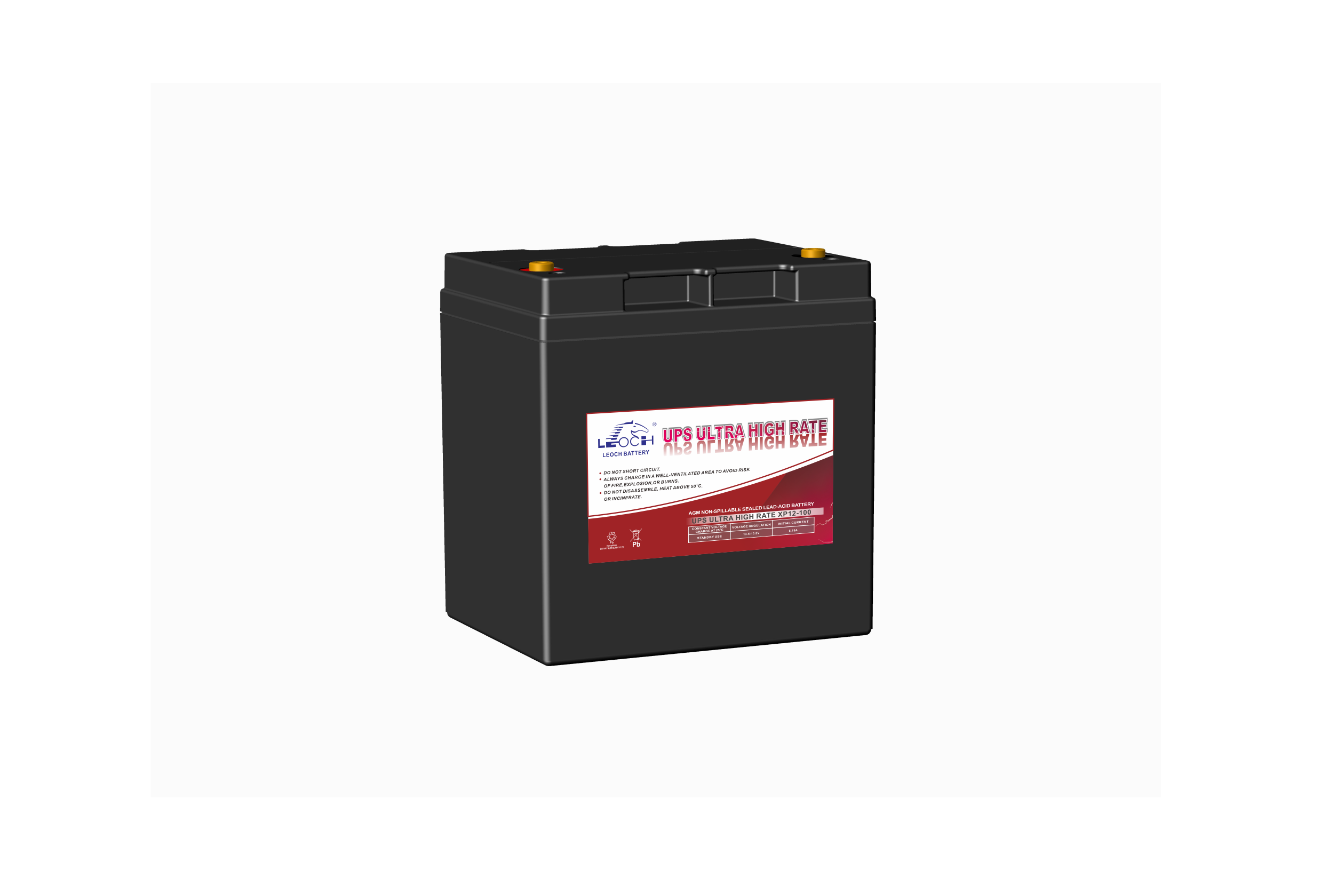

XP Series batteries incorporate advanced VRLA&TTP technology designed for ultra high rate performance in UPS & power supply applications with 12 years design life at 25 ℃ ambient temperature. By using strong grid and specific paste plate to insure extra durable stable performance under high rate discharge.

Contact US

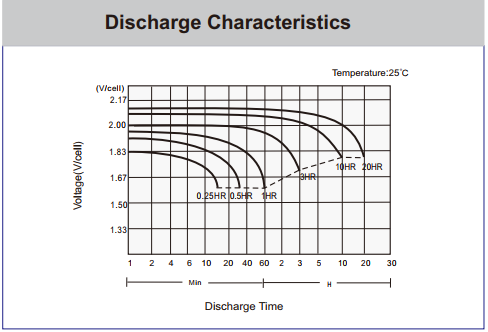

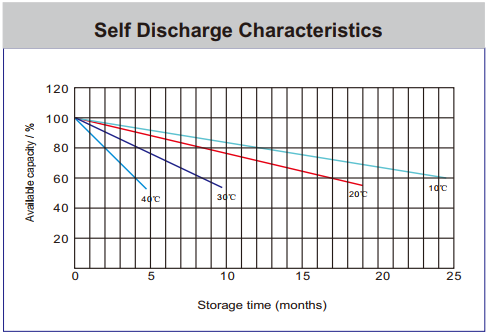

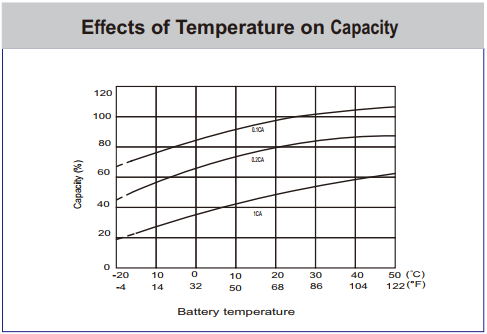

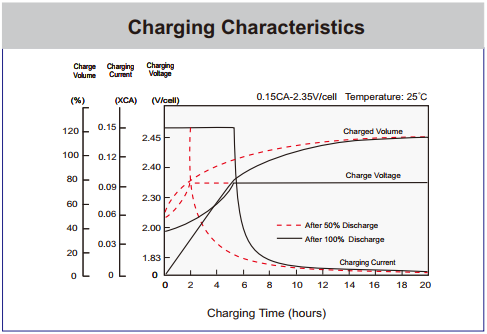

Specification Features Application Curves
Model

Rated

 Voltage

(V)

W15min

@1.67V/cell

20hr

@1.80V/cell

10hr

@1.80V/cell

L(mm)W(mm)H(mm)TH(mm)

Gross

 Weight (kg)

Terminal
Type
XP12-1001210027.626.21641251741748.40T12-I(M5)
XP12-150121503533.519513016416710.44T6-I(M6)

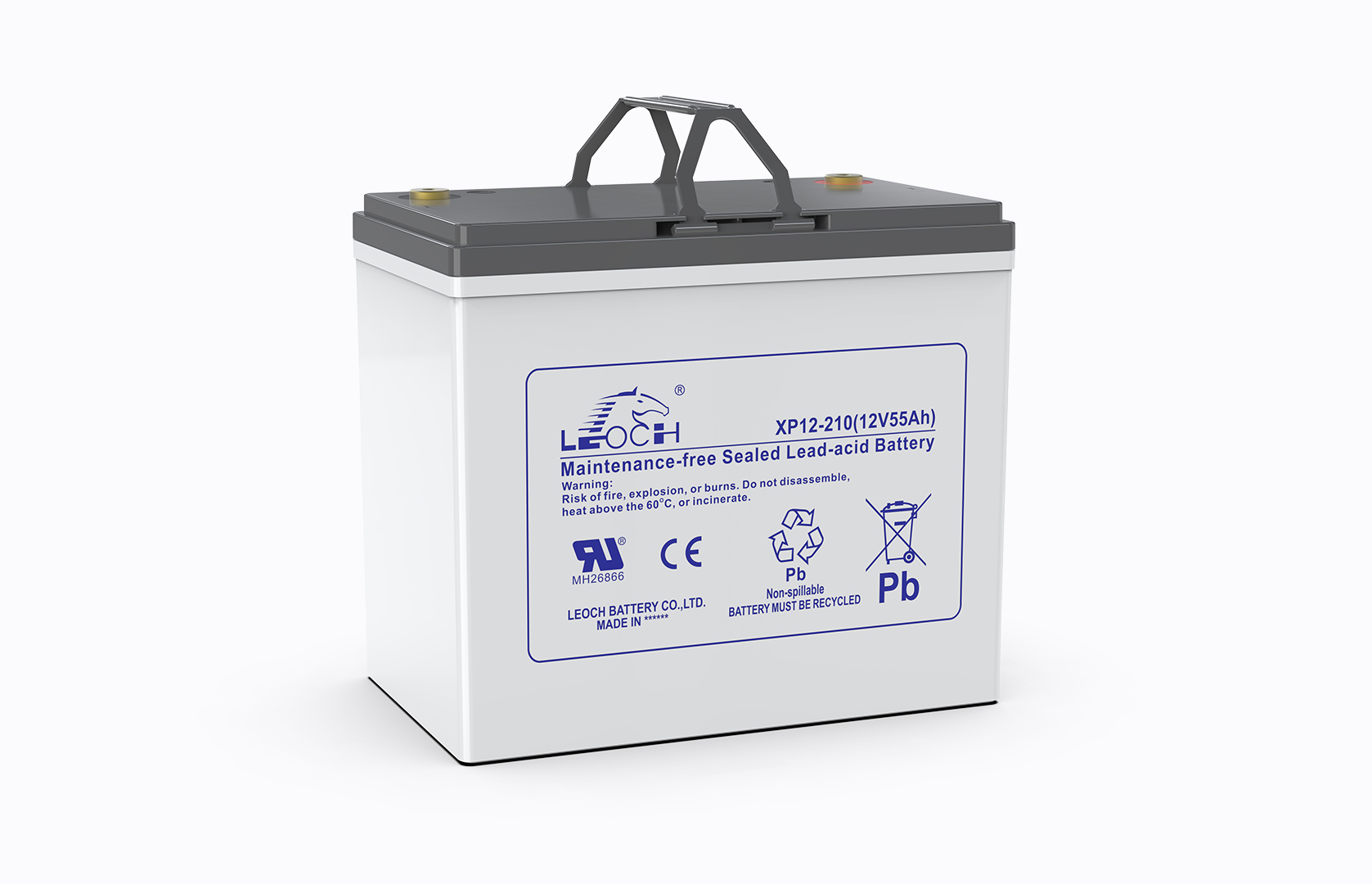

XP12-210122105552.622913820020317.7T6(M6)

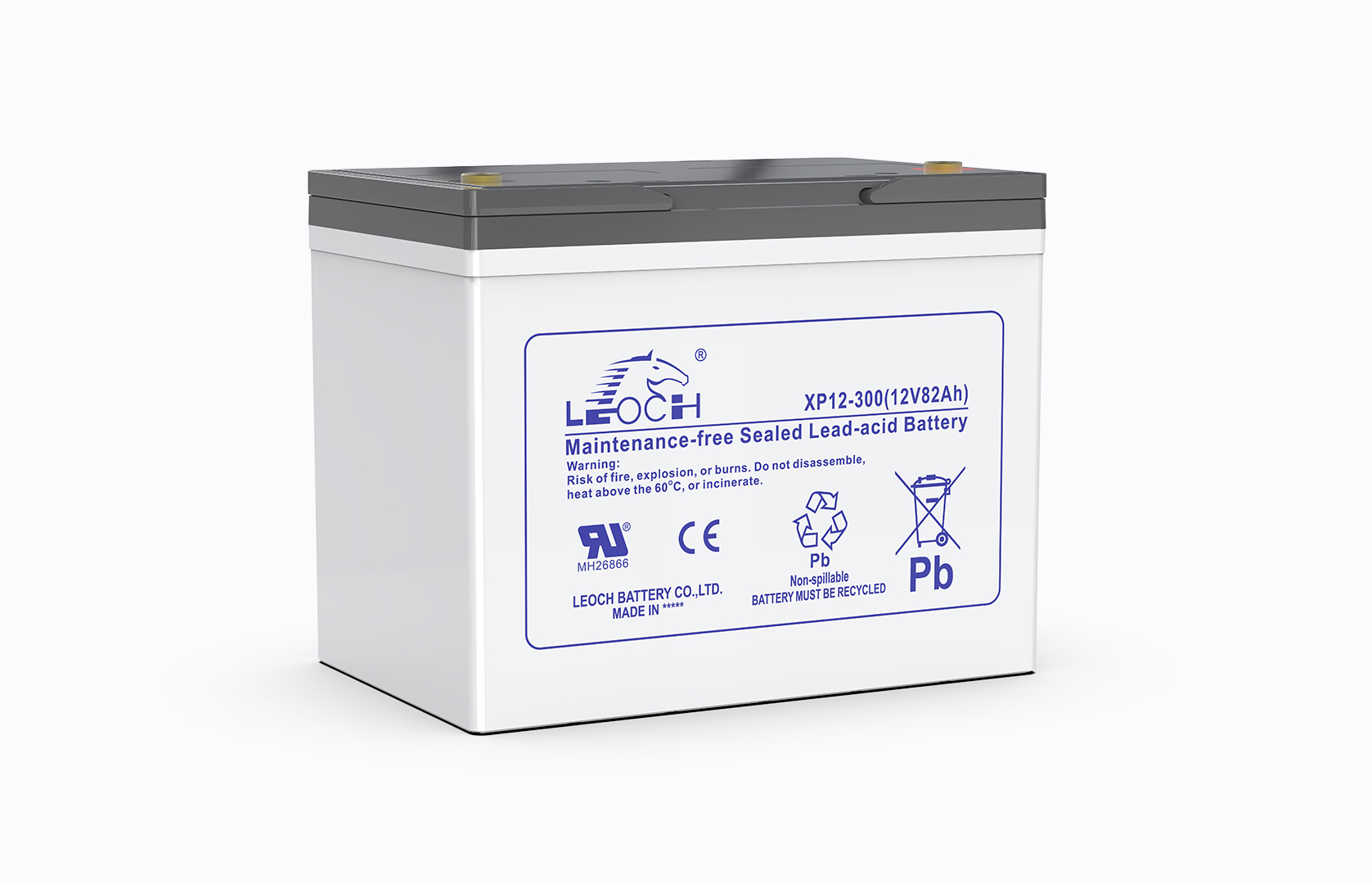

XP12-300123008278.626016820821124.2T6(M6)
XP12-350123509590.730616820821128.2T6(M6)
XP12-40012400101.696325.517021321631.6T8(M6)
XP12-4901249014213633517227527842.6T8(M6)

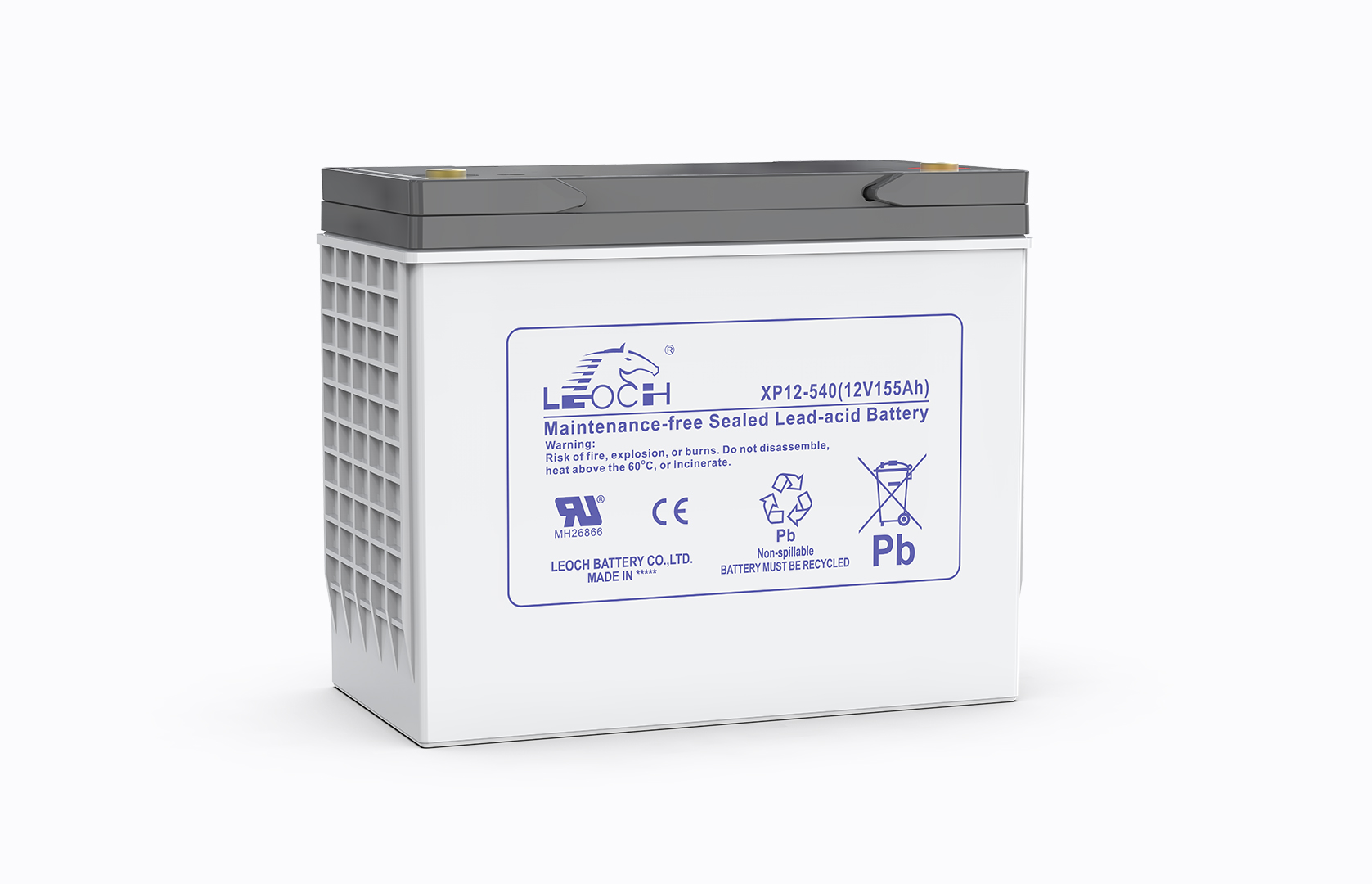

XP12-5401254015514733517227527842.40T8(M6)


Parameter information subject to the contract, here for your reference only.

1. Valve Regulated Lead Acid (VRLA) Battery

2.  Absorbent Glass Mat (AGM) Separators technolog for high efficiency gas absorption of up to 98%

3.  Maintenance Free (no topping up)

4.  No restrictions for rail, road, sea & air transport -Complies with IATA/ICAO Special Provisions A67

5.  Special designed grids for optimized high power density

6.  Advanced lead tin calcium alloy, reduces grid corrosion & promotes long battery life

7.  Oversized partition intercell welds, providing low resistance connections & minimal power loss

8.  Performance excels at high rates of discharge & recharge

9.  High integrity post seal for long life

10.  Vent Valve - allows the release of excess gases & prevents case rupture

11.  Design according with IEC 60896-21/22:2004, etc.

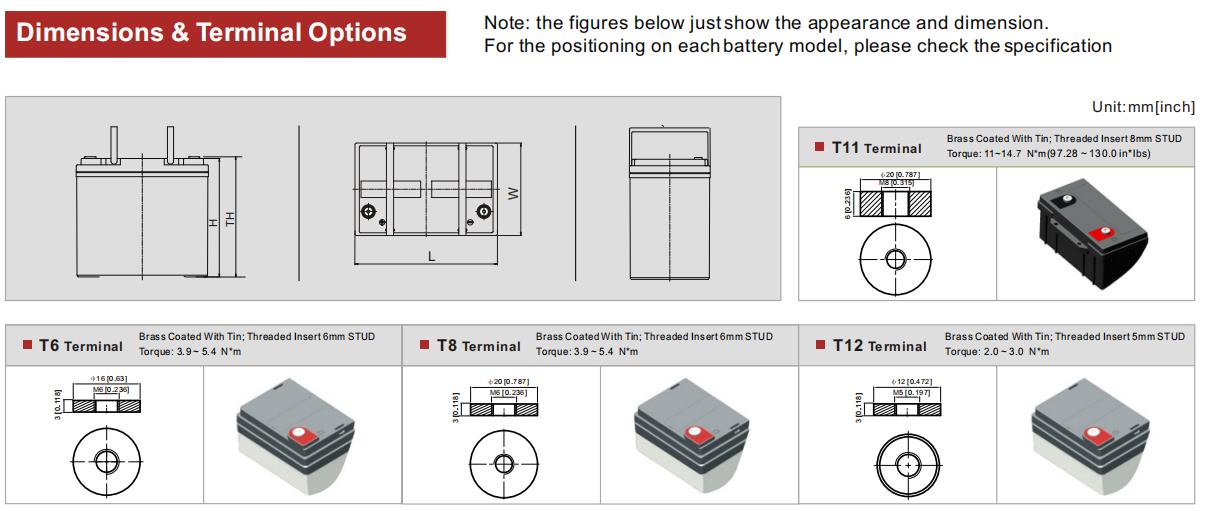

Terminal


  • 1. Data Centre (High Rate UPS)
  • 2. Telecommunication
  • 3. Banks & Financial Centre
  • 4. Hospital& Testing Laboratories
  • 5. Power Generation Plants
  • 6. Emergency Lighting
  • 7. Emergency Power Supply
  • 8. High Power Backup Supply
