LPG battery contains gel electrolyte primarily produced by the homogeneous distributed SiO in a diluted sulfuric acid named gel 2SOL with thixotropic properties. The special designed vent valves are also used to control the gassing and water losing rate. Since no maintenance is required and valve regulated, they are classified as one type of VRLA batteries (The other type is VRLA-AGM batteries).
Contact US| Model | Rated Voltage | 20Hr | 10Hr | Length | Width | Height | TH | Weight | Terminal |
| V | 1.80V/cell | 1.80V/cell | mm | mm | mm | mm | kg | ||

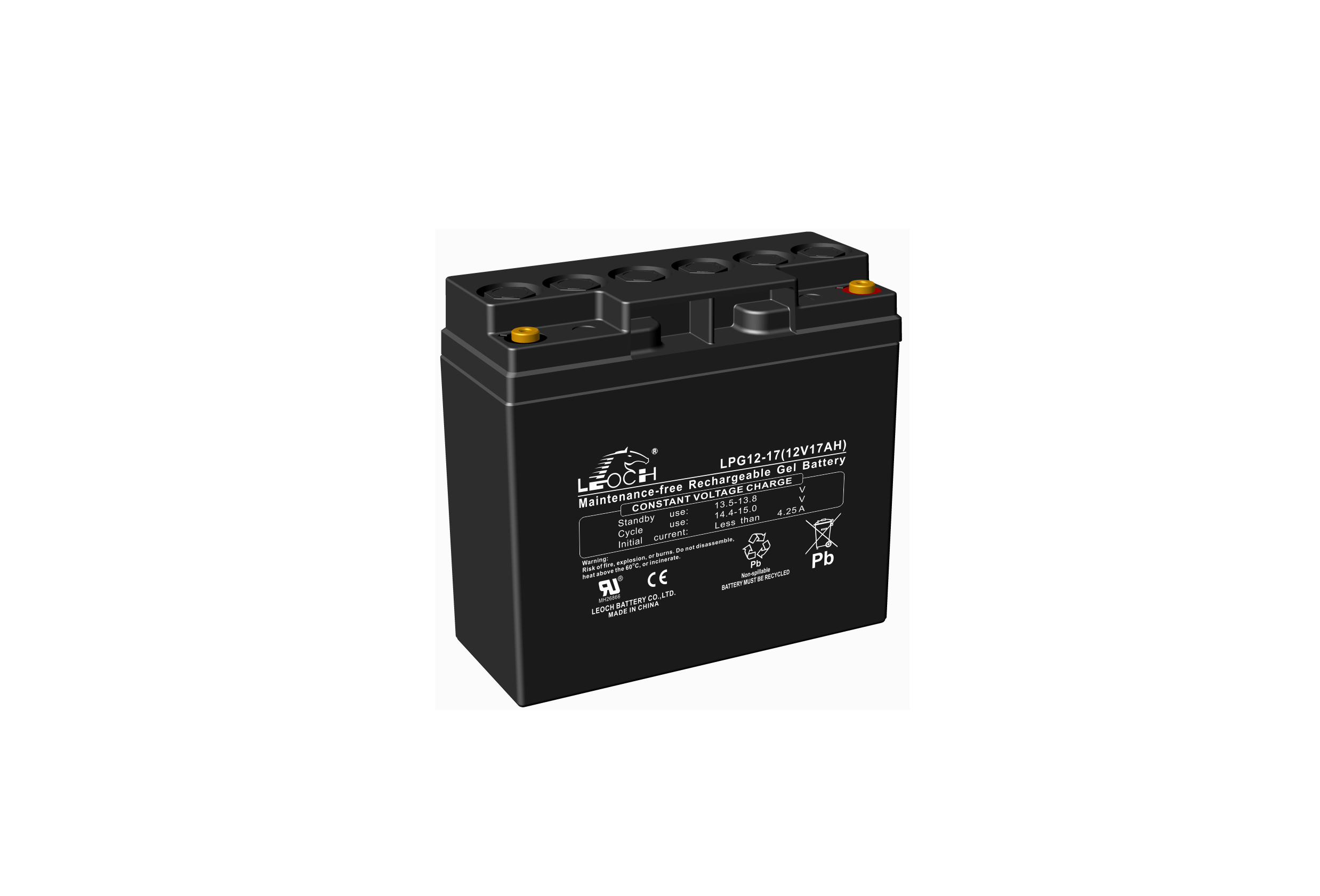

| LPG12-17 | 12 | 17 | 181.5 | 76.5 | 167.5 | 167.5 | 5.8 | T12(M5) | |
| LPG12-24 | 12 | 24 | 166 | 175 | 125 | 125 | 8.5 | T12(M5) | |
| LPG12-31 | 12 | 30 | 195 | 130 | 164 | 178 | 10.2 | T5 | |
| LPG12-38 | 12 | 38 | 197 | 165 | 170 | 170 | 12.8 | T6(M6) | |
| LPG12-45 | 12 | 45 | 257 | 132 | 200 | 200 | 15.5 | T6(M6) | |
| LPG12-50 | 12 | 50 | 229 | 138 | 205 | 211 | 16.1 | T6(M6) | |
| LPG12-60 | 12 | 60 | 255 | 170 | 174.5 | 177.5 | 18.5 | T6(M6) | |
| LPG12-65 | 12 | 65 | 325 | 167 | 174 | 174 | 20.5 | T6(M6) | |
| LPG12-70H | 12 | 70 | 260 | 168 | 208 | 214 | 22.9 | T6(M6) | |
| LPG12-85 | 12 | 85 | 306 | 168 | 208 | 214 | 27.5 | T6(M6) | |

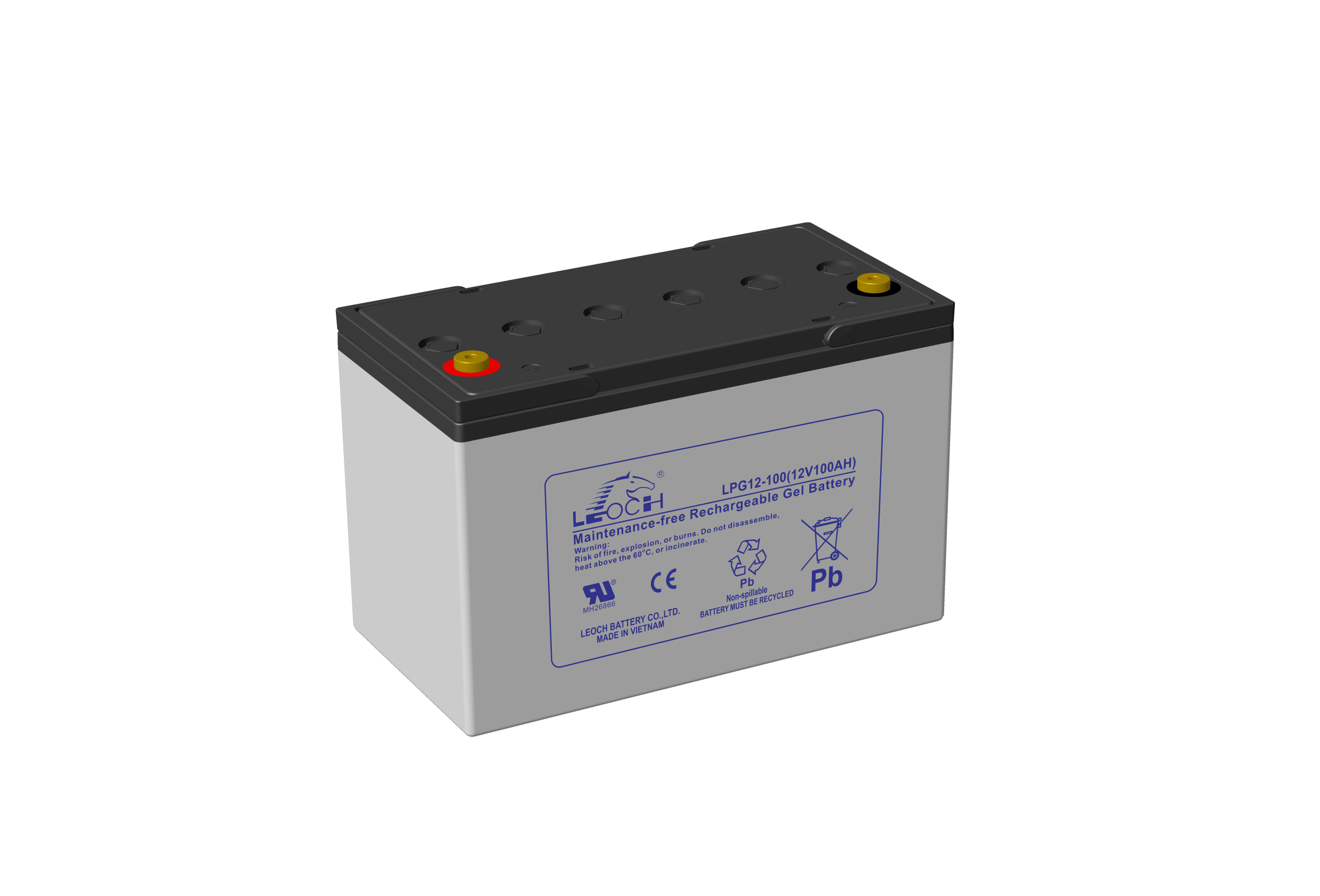

| LPG12-100 | 12 | 100 | 330 | 173 | 212 | 218 | 31.2 | T11(M8) | |
| LPG12-110 | 12 | 110 | 408 | 177 | 225 | 225 | 34.5 | T11(M8) | |
| LPG12-125 | 12 | 125 | 345 | 172 | 274 | 280 | 40 | T11(M8) | |
| LPG12-140 | 12 | 140 | 483 | 170 | 238.5 | 238.5 | 43.8 | T11(M8) | |
| LPG12-160 | 12 | 160 | 522 | 240 | 218 | 224 | 57.5 | T11(M8) | |
| LPG12-200 | 12 | 200 | 522 | 240 | 218 | 224 | 62.3 | T11(M8) | |
| LPG12-240 | 12 | 240 | 522 | 268 | 220 | 226 | 73.3 | T11(M8) | |
| LPG2-100 | 2 | 100 | 170 | 72 | 205 | 214 | 6 | T6(M6) | |
| LPG2-120 | 2 | 120 | 170 | 98 | 205 | 214 | 7.3 | T7(M6) | |
| LPG2-200 | 2 | 200 | 170 | 110 | 328 | 337 | 14.1 | T11(M8) | |
| LPG2-300 | 2 | 300 | 170 | 150 | 330 | 339 | 19.5 | T11(M8) | |
| LPG2-400 | 2 | 400 | 210 | 175 | 330 | 339 | 27 | T11(M8) | |

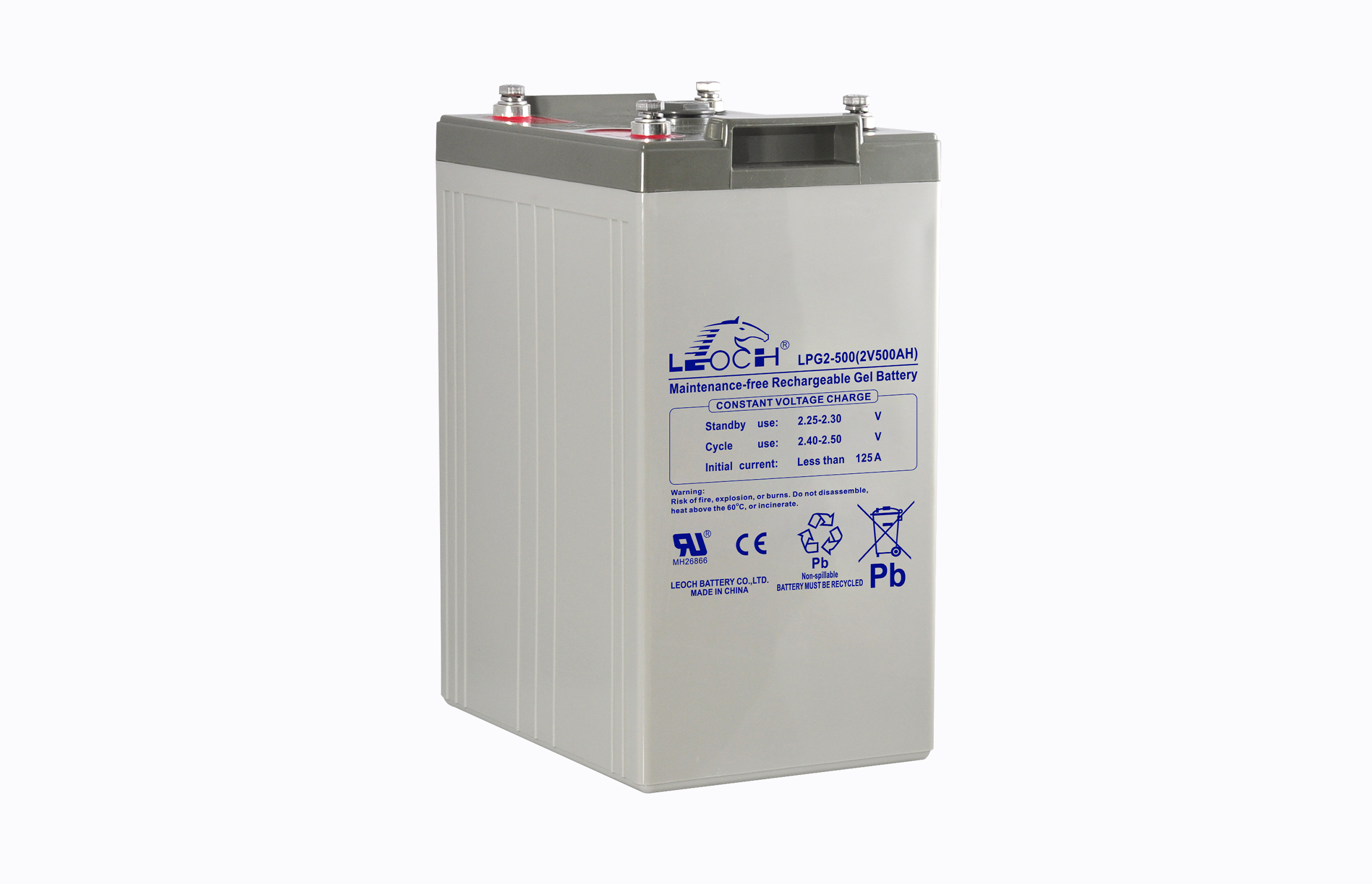

| LPG2-500 | 2 | 500 | 240 | 175 | 327.5 | 338 | 31.8 | T11(M8) | |
| LPG2-600 | 2 | 600 | 300 | 175 | 330 | 340 | 40.0 | T11(M8) | |
| LPG2-800 | 2 | 800 | 410 | 175 | 330 | 340 | 54.0 | T11(M8) | |
| LPG2-1000 | 2 | 1000 | 475 | 175 | 328 | 328 | 64.1 | T11(M8) | |
| LPG2-1500 | 2 | 1500 | 403 | 354 | 339 | 349 | 102 | T11(M8) | |
| LPG2-2000 | 2 | 2000 | 490 | 350 | 339 | 349 | 130.0 | T11(M8) | |
| LPG2-3000 | 2 | 3000 | 709 | 350 | 337 | 347 | 190 | T11(M8) |
Parameter information subject to the contract, here for your reference only.
1. The maximum design life up to 16 years
2. Long time discharge
3. Suitable for space and storage electric power use
4. Special plate design, long cycle lifetime
5. Using special lead-calcium alloy to boost up the grid anti-corrosive performance and extend the battery using lifetime
6. Using special separator to boost up the battery performance inside
7. High thermal capacity, reduce the risk of thermal out of control and drying hard, can be used in bad environment
8. High gas recombined reaction efficiency
9. Little water losing, no electrolyte stratification phenomenon
10. Long storage time
11. Good deep discharge resilience performance
12. Using gas silicon dioxide, small granule degree, bigger than surface area
